To calculate radiant exposure at a specified surface, multiply constant irradiance in watts per square centimeter by exposure time in seconds. The result is expressed in joules per square centimeter, not total body energy or an absorbed tissue dose. Body Balance System specifies the OvationULT at 65 mW/cm² at the acrylic surface using LightLab methodology. Using that value for a constant-output calculation over a typical 15-minute session yields 58.5 J/cm² at that exact reference plane.
This figure serves as a transparent arithmetic example, not a measured patient dose or clinical prescription. Operators should always evaluate the measurement location, instrument calibration, operating conditions, and experimental uncertainty alongside any calculated optical value.
Radiant exposure equals irradiance multiplied by time when irradiance remains constant at the stated measurement plane. Always convert milliwatts to watts and minutes to seconds before calculating. Surface exposure describes incident energy per unit area, not the energy absorbed throughout a client's body or proof that two different equipment protocols are biologically equivalent.
How do irradiance, radiant exposure, and total energy differ?
Photobiomodulation (PBM) literature uses several related physical quantities that should never be collapsed into the generic word "power." Irradiance describes radiant power received per unit area, while radiant exposure describes accumulated incident energy per unit area over a defined exposure time (Hadis and colleagues). Distinguishing these quantities helps operators read both published scientific methods and commercial equipment specifications without confusing an instantaneous rate with an accumulated total.
Total radiant energy is measured in joules. Radiant exposure is measured in joules per square centimeter (J/cm²), meaning it is not a whole-device or whole-body energy figure (Hadis and colleagues). Always ask which quantity a manufacturer or supplier means whenever marketing literature cites an energy number without stating the area unit and reference plane.
┌────────────────────────────────────────────────────────┐
│ THREE QUANTITIES, THREE QUESTIONS │
├────────────────────────────────────────────────────────┤
│ 1. RADIANT POWER (Watts) │
│ How much optical energy passes per second? │
│ │ │
│ ▼ │
│ 2. IRRADIANCE (W/cm² or mW/cm²) │
│ How much power arrives per unit area? │
│ │ │
│ ▼ (Accumulated over time) │
│ 3. RADIANT EXPOSURE (J/cm²) │
│ How much incident energy accumulates per unit area? │
└────────────────────────────────────────────────────────┘
|
Quantity |
Typical Unit |
Question It Answers |
|
Radiant power |
W |
How much optical energy passes per second? |
|
Irradiance |
W/cm² or mW/cm² |
How much power arrives per unit area? |
|
Exposure time |
Seconds |
How long does the stated exposure last? |
|
Radiant exposure |
J/cm² |
How much incident energy accumulates per unit area? |
|
Total radiant energy |
J |
How much optical energy is delivered across the defined area and time? |
The terminology and unit relationships in this table follow the standard radiometry framework described by Hadis and colleagues. They do not establish a specific clinical treatment dose.
Define the calculation before entering numbers
For constant irradiance, use the formula:
RadiantExposure(J/cm²)=Irradiance(W/cm²)Time(seconds)
If optical output changes over time, radiant exposure represents the mathematical time integral of irradiance, rather than a simple multiplication by an unverified peak value (Hadis and colleagues). A reliable calculation worksheet must make this constant-output assumption explicit before anyone relies on its result.
What does the OvationULT calculation show, and what does it leave unmeasured?
The OvationULT published specification is 65 mW/cm² at the acrylic surface (LightLab methodology). Converting milliwatts to watts gives 0.065 W/cm², and a standard 15-minute operating interval contains 900 seconds. Multiplying 0.065 W/cm² by 900 seconds yields 58.5 J/cm².
This is a derived reference-plane calculation using a verifiable product specification. It assumes that the stated irradiance remains constant across the defined surface over the interval. It is not an in-vivo tissue measurement, an average across irregular body contours, or a claim regarding energy absorbed at an internal anatomical depth.
The OvationULT operates with 10 to 20 minute sessions (typical 15 minutes). Under the identical constant-output reference-plane assumption:
-
10 minutes (600 seconds): 0.065W/cm²600s=39.0J/cm²
-
20 minutes (1,200 seconds): 0.065W/cm²1,200s=78.0J/cm²
These values illustrate unit conversion across the manufacturer's session window, not a clinical recommendation to alter operating parameters or lengthen appointments.

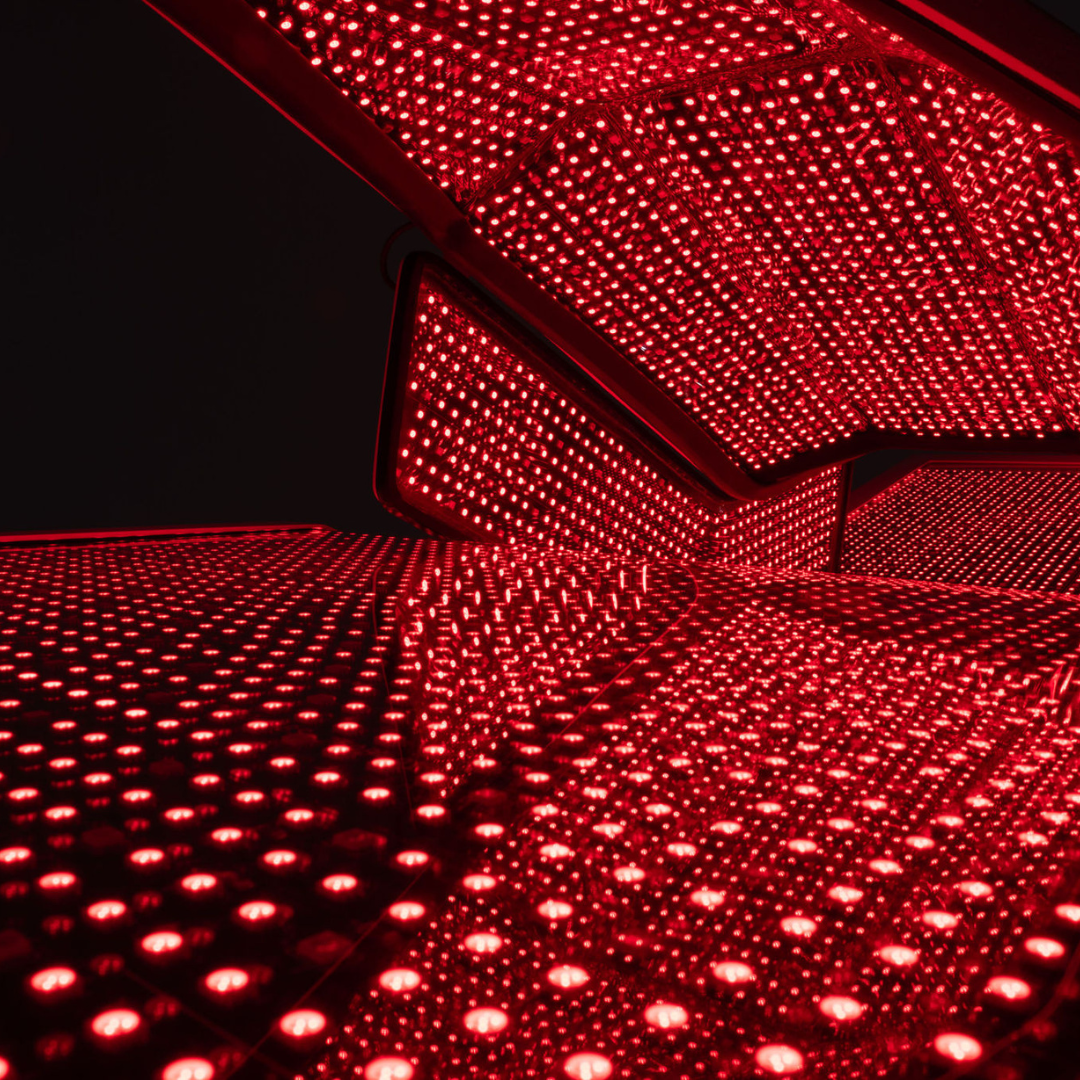

The OvationULT incorporates a zero-gravity canopy design maintaining 0 to 2 inch proximity to the user. Keep this geometry explicit in your technical documentation, but do not assume an acrylic measurement translates directly to an identical skin-surface reading without supporting test data. The measurement plane must remain tied to the number.
The OvationULT contains 28,443 diodes: 22,755 visible red at 635 nm and 5,688 near-infrared at 850 nm. Diode counts describe physical array configuration, not a calibrated division of optical power between wavelengths. Total irradiance cannot be divided mathematically between red and near-infrared emitters simply by diode ratios without calibrated spectroradiometric data.
Why is surface exposure different from absorbed tissue dose?
When light strikes a biological surface, photons are reflected, scattered, or absorbed based on wavelength and tissue optical properties (Zein, Selting, and Hamblin). A surface calculation cannot, on its own, tell an operator how much energy reaches a subsurface target.
Research reporting distinguishes the beam area at the tissue or culture surface from the aperture area of the emitting source (Jenkins and Carroll). A measurement recorded at one physical location must not be relabeled as a measurement at another.
Maintain precise headings in equipment comparison records. "Reported irradiance at acrylic surface" and "measured irradiance at skin reference plane" represent different categories of evidence. If a supplier's spec sheet omits the measurement location, leave the comparison unresolved rather than assuming a distance.
Avoid labeling calculated values like 58.5 J/cm² as "delivered cellular energy." That phrasing claims an internal biological target that the math does not verify. A precise, compliant label is "calculated incident radiant exposure at the acrylic reference plane, assuming constant stated irradiance."
Can equal radiant exposure make two protocols equivalent?
Equal radiant exposure does not guarantee an equivalent biological response when irradiance and exposure time differ (Hadis and colleagues). Photobiomodulation exhibits complex intensity and time dependencies, meaning both variables must remain visible rather than comparing J/cm² values alone.
Zein and colleagues emphasize that photobiomodulation parameter selection depends on multiple interdependent variables, including wavelength, irradiance, exposure duration, delivery geometry, and tissue characteristics (Zein, Selting, and Hamblin). Their analysis does not validate any specific commercial bed, nor does it provide authorization to transpose a laboratory study protocol to commercial equipment.
For a commercial operator, the useful question is not "Can I match this arithmetic result?" It is "Does the source provide enough physical detail to understand what was tested?" Matching arithmetic is a starting point for technical evaluation, never proof of interchangeable clinical outcomes.
Keep academic research literature and manufacturer instructions in separate files. Research informs scientific literacy and helps operators evaluate device engineering. The manufacturer's official labeling and instructions for use govern operation of commercial equipment, and an online calculation must never supersede them.
What should operators request before accepting a dose comparison?
Request the primary data inputs that allow a third party to evaluate and verify the claim. Jenkins and Carroll recommend reporting wavelength, power, irradiation time, beam spot area, pulsing parameters, anatomical location, treatment frequency, and treatment intervals (Jenkins and Carroll). Commercial comparisons should adopt that discipline:
-
Measurement location: Require the exact reference plane and equipment geometry used during testing.
-
Output definition: Clarify whether irradiance represents a localized point reading, spatial average, peak value, or time average.
-
Instrument record: Request the sensor type, calibration certificate, and testing methodology (such as LightLab methodology).
-
Exposure conditions: Document total run time and any pulsing duty cycles that alter average output.
-
Calculation worksheet: Preserve original units, mathematical conversions, baseline assumptions, and the reviewer's identity.
-
Evidence boundary: Note clearly whether the value is physically measured, derived from arithmetic, or supplied without supporting test data.
Hadis and colleagues found that measurement methods and essential beam parameters were frequently missing from published literature. That finding highlights the importance of asking disciplined questions rather than accepting unverified marketing figures.
Use a five-step arithmetic review
-
Name the quantity: State clearly whether you are evaluating irradiance, radiant exposure, or total radiant energy.
-
Fix the reference plane: Identify the exact measurement plane (e.g., bare diode face versus acrylic contact surface).
-
Convert the units: Convert milliwatts to watts (divide by 1,000) and minutes to seconds (multiply by 60) before calculating.
-
State the assumptions: Document whether output is continuous or pulsed, and note any spatial variations across the array.
-
Limit the conclusion: Report the calculated exposure at the surface without claiming an internal cellular dose or medical outcome.
Have a second team member review the worksheet before publishing figures or incorporating them into staff training. Verify units, measurement locations, and wording alongside the math. If underlying assumptions change, recalculate the entire equation rather than modifying isolated numbers.
Frequently Asked Questions
How do I calculate radiant exposure from irradiance?
Multiply constant irradiance in W/cm² by exposure time in seconds to obtain radiant exposure in J/cm² at the stated reference plane. Always convert milliwatts to watts first. If irradiance fluctuates or pulses, the calculation must integrate power over time rather than multiplying an unverified peak number (Hadis and colleagues).
What does 65 mW/cm² deliver over a 15-minute session?
Using the OvationULT baseline of 65 mW/cm² at the acrylic surface (LightLab methodology), a constant-output calculation over 900 seconds yields 58.5 J/cm² at that acrylic reference plane. This is an illustrative reference calculation, not a measured skin dose, absorbed tissue dose, or treatment recommendation.
Can I multiply irradiance by diode count to calculate total energy?
No. Diode count represents component density, not illuminated surface area. Converting radiant exposure (J/cm²) into total energy (joules) requires the total illuminated surface area in square centimeters. Multiplying irradiance directly by diode count is mathematically and physically incorrect.
Does the same J/cm² figure mean two devices will produce the same outcome?
No. Identical radiant exposure can result from different combinations of irradiance and exposure time, which do not necessarily produce equivalent biological responses (Hadis and colleagues). Optical wavelength, beam geometry, duty cycle, and tissue optical properties also govern light interaction.
Should operators alter session times to match published research papers?
No. Published research parameters must not replace manufacturer instructions for use. The OvationULT is engineered for 10 to 20 minute sessions (typical 15 minutes). Operators should use research to evaluate optical physics while operating commercial equipment strictly according to manufacturer labeling and regulatory scope.
What are the FDA-cleared indications for the OvationULT?
The OvationULT is an FDA registered Class II medical device listed under product code ILY (21 CFR 890.5500). Cleared indications include topical heating, temporary relief of minor muscle and joint pain, stiffness, minor arthritis pain, muscle spasm relaxation, and temporary increase in local blood circulation. Mathematical dose models do not expand this labeled scope.
