Space Planning for a Commercial Red Light Therapy Bed

The OvationULT measures roughly 7 feet 6 inches long by 3 feet 6 inches wide when closed, with the zero-gravity canopy design operating at 0 to 2 inch proximity to the client. Adding 30 inches of clear transfer-side floor space and 24 inches at the foot for staff prep and door swing puts the practical working envelope at 10 feet by 12 feet.

That footprint matches standard healthcare and wellness architectural conventions. The FGI Guidelines minimum for an exam or treatment room is 120 square feet with a 10-foot minimum clear dimension, and 80 square feet for an outpatient exam room (FGI Guidelines, 2018). Most medspa treatment rooms and gym recovery suites fall between 100 and 150 square feet, meaning an OvationULT retrofit rarely requires structural demolition. Two beds staggered in a shared space require approximately 200 square feet plus a dividing partition curtain.

How does a red light therapy bed compare to a massage table for space and utility requirements?

A commercial red light therapy bed can replace a traditional massage table in a treatment room with fewer utility demands. It utilizes the same general floor footprint, a 30-inch transfer clearance, and standard ADA routing, but differs in electrical setup, HVAC demands, and staff labor.

What ceiling height and clearance does a commercial red light therapy bed require?

Fully raised, the OvationULT canopy reaches approximately 6 feet 4 inches. An 8-foot finished ceiling (standard for U.S. commercial buildouts) leaves more than 20 inches of clearance for overhead lighting, fire sprinklers, and HVAC supply diffusers. Do not install ceiling fans or low-hanging pendant fixtures directly over the bed footprint. In exposed-duct or open-ceiling fitness spaces, verify that structural beams and low ductwork clear at least 7 feet.

Maintain 24 to 36 inches of clear floor space on the client transfer side and at the foot of the bed. This satisfies operator ergonomics during cleaning and meets the ADA accessible route requirement of a 36-inch minimum clear walking width (U.S. Department of Justice, 2010 ADA Standards).

Why 120V matters: electrical requirements compared to competing beds

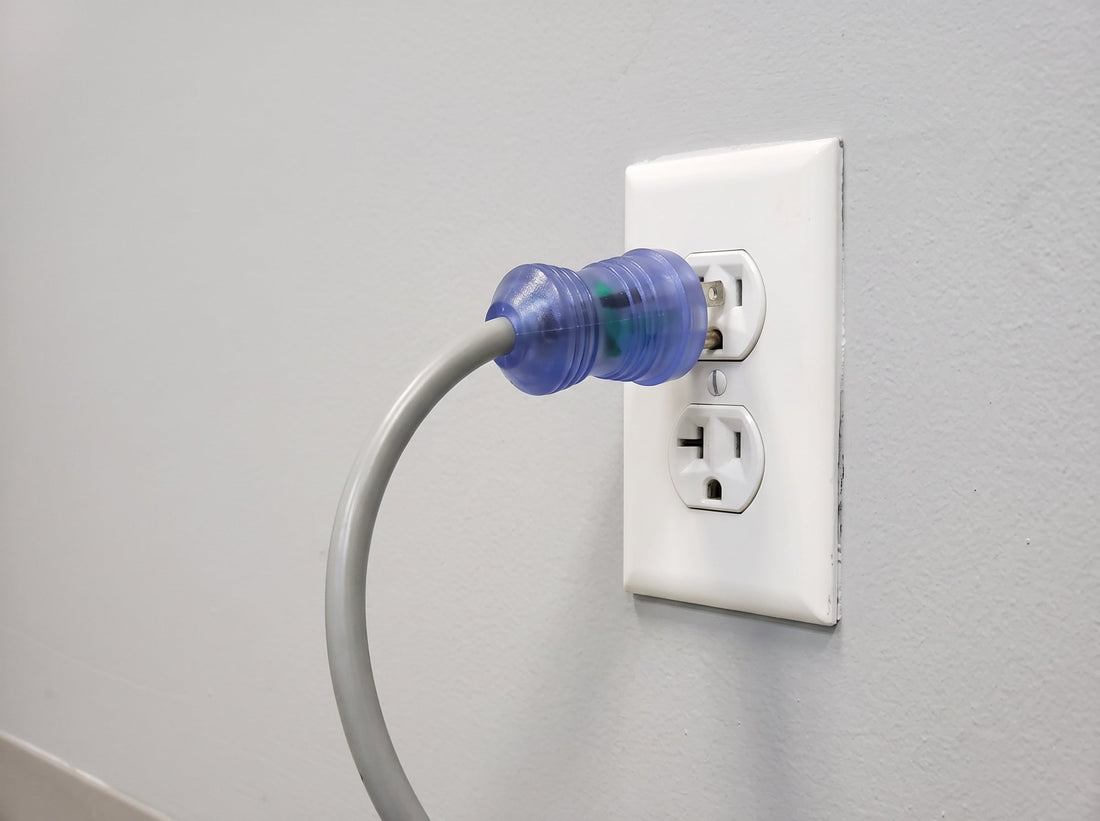

The OvationULT operates on a single 120V standard outlet. Many commercial full-body RLT systems require a 208V or 240V dedicated 30-amp or 40-amp circuit. Bringing dedicated 240V service into an existing suite typically introduces a $2,000 to $6,000 electrical contractor expense along with two to six weeks of municipal permit and inspection delays.

Operators deploying 120V-compatible systems can bring treatment rooms online weeks faster by eliminating electrical buildouts. The OvationULT is SGS / NRTL certified, IEC 60601-1 compliant, and an FDA registered Class II medical device (Registration #3010627475, product code ILY). This compliance stack provides the exact documentation commercial facility engineers, building inspectors, and insurance underwriters require.

How much HVAC and ventilation does the room need?

Heat dissipation from 28,443 diodes (22,755 red at 635 nm and 5,688 near-infrared at 850 nm) during a 10 to 20 minute session (typical 15) is modest. The canopy enclosure is sealed, and the acrylic surface concentrates energy toward the client rather than warming the broader air column. Internal canopy air temperature rises 4 to 8°F above ambient during a session and equalizes within two to three minutes after the canopy opens.

Practical HVAC guidelines for a single-bed room:

• Size supply air to maintain 68 to 72°F ambient with a 300 to 500 BTU/hr latent heat contribution from the equipment and occupant.

• Provide a clear return air path (door undercut or transfer grille) to prevent positive pressure accumulation when the door remains shut during sessions.

• Position supply diffusers away from the immediate overhead canopy footprint to avoid blowing cold air directly onto resting clients.

• Verify dedicated or zoned thermostat control when scheduling continuous, back-to-back appointments.

• Include a 5-minute buffer between appointments for complete air exchange and surface sanitization.

For medical spas operating under ANSI/ASHRAE/ASHE Standard 170, the code governs mechanical air exchange in treatment suites. Fitness and recovery clubs typically design to ASHRAE 62.1. Both standards accommodate the OvationULT thermal load without specialized cooling add-ons.

What does traffic flow look like for a commercial RLT room?

Room layout directly governs throughput. A properly planned treatment room easily supports two clients per bed per hour using a 15-minute session format within the 10 to 20 minute operating range. This doubles per-hour room throughput compared to traditional 60-minute manual therapy services.

Key layout criteria for commercial placement:

• Client Entry: Direct access from the hallway or lounge via a door providing at least 32 inches of clear opening width per ADA Standard 404.

• Changing Area: A private changing alcove (minimum 3 ft by 3 ft) with hooks and a bench, either attached or within the room perimeter.

• Transfer Clearance: A 30 by 48 inch clear floor area along the access side of the bed per ADA Standard 305.3.

• Staff Prep Station: A compact 6 to 10 square foot counter or wall shelf holding sanitized eyewear, towels, and fresh barrier covers.

• Sanitation Access: Wall-mounted hospital-grade disinfectant wipes positioned within easy reach of the bed platform.

• Acoustic and Visual Privacy: Solid-core doors, perimeter door gaskets, and blocked sightlines from public corridors.

A 5-Step Room Turnover Workflow:

1. Exit and Initial Wipe: Client departs; staff opens canopy and cleans acrylic surfaces and headrests with an approved surface disinfectant.

2. Amenity Reset: Eyewear, fresh linens, and robes are refreshed.

3. Thermal Equalization: The open canopy dwells for two minutes to equalize cabin temperature with ambient room air.

4. Client Intake: Next client enters, receives brief orientation, dons eye protection, and positions on the bed platform.

5. Session Initiation: Canopy lowers, session timer starts, and staff transitions to adjacent tasks.

What ADA and accessibility features should a commercial RLT room have?

At minimum, the room must connect to an accessible route providing a 36-inch minimum clear walking width, a 32-inch clear door opening, and 30 by 48 inches of unobstructed floor space on the primary transfer side (2010 ADA Standards for Accessible Design).

The OvationULT platform step height sits at approximately 12 inches. Facilities accommodating clients with reduced mobility often provide a sturdy, ADA-height transfer bench adjacent to the unit. Always confirm specific municipal or state accessibility codes (such as California CBC or Texas TAS) with local building authorities prior to finalizing floor plans.

How much square footage do you need across different verticals?

While the equipment envelope remains identical, adjacent space planning varies according to facility business model:

Across Body Balance System's install base, roughly three out of four medspa conversions require no structural modifications, needing only decorative lighting and layout adjustments. Fitness recovery suites frequently benefit from durable, seamless vinyl flooring upgrades to facilitate rapid cleaning, while resort spas typically integrate the bed into existing private bodywork suites.

Frequently Asked Questions

How much space do I need for a commercial red light therapy bed?

Plan for a minimum room footprint of 10 by 12 feet (120 square feet) with an 8-foot ceiling. This accommodates the OvationULT, a 30-inch transfer clearance zone, an ADA-compliant 32-inch door swing, and a staff prep counter.

Does a commercial red light therapy bed need 240V power?

No. The OvationULT operates on a standard 120V outlet on a 20-amp branch circuit. This avoids the $2,000 to $6,000 electrical drop and permit review periods often required by 240V equipment.

How much HVAC capacity does a red light therapy room need?

Very little. A single OvationULT session contributes approximately 300 to 500 BTU/hr of latent heat with an occupant. Standard commercial ventilation meeting ASHRAE 62.1 or ASHE Standard 170 handles this heat load without supplemental cooling units.

How many clients can one commercial red light therapy bed serve per hour?

Two clients per hour serves as the dependable commercial baseline, using a 15-minute session duration within the 10 to 20 minute range plus turnover buffers. With streamlined staff turnover, three appointments per hour can be scheduled.

What ceiling height is required for a commercial RLT bed?

An 8-foot finished ceiling is standard. The OvationULT canopy reaches roughly 6 feet 4 inches when opened fully, leaving more than 20 inches of clearance for fire suppression sprinklers and lighting fixtures. Avoid ceiling fans directly above the canopy.

Is a commercial red light therapy bed ADA accessible?

The room and surrounding pathways must comply with ADA requirements, including a 36-inch walking corridor, a 32-inch clear door opening, and a 30 by 48 inch clear transfer floor space.

Can I install two commercial red light therapy beds in one room?

Yes. A space of approximately 200 square feet with a privacy divider comfortably houses two beds, enabling a single attendant to manage staggered sessions and achieve higher per-hour throughput.

Zero-Gravity Canopy Design

Zero-gravity canopy design refers to an engineered clamshell enclosure geometry that brings the diode array within 0 to 2 inches of the client's skin without uncomfortable surface pressure. This close proximity maintains 65 mW/cm² at the acrylic surface (LightLab methodology), allowing the OvationULT to deliver consistent energy distribution across full-body sessions in 10 to 20 minutes (typical 15) inside a 120 square foot room.
