Continuous-wave and pulsed light delivery describe how optical energy varies over time, not a complete definition of what an exposure delivers to tissue. When reviewing photobiomodulation (PBM) literature, commercial operators must account for wavelength, delivered irradiance, beam spot size, measurement distance, exposure duration, and duty cycle.
A pulse frequency number alone cannot establish dose or clinical superiority. This guide explains how to calculate duty cycle, distinguish average from peak power, and extract the parameters needed to evaluate study claims responsibly. It connects optical physics principles to practical equipment due diligence, using Body Balance System's published OvationULT specification (65 mW/cm² at the acrylic surface via LightLab methodology) to illustrate why measurement locations must remain explicit.
What is continuous light, and how does pulsed delivery differ?
Continuous-wave (CW) emission delivers uninterrupted optical energy throughout the entire duration of an exposure. Pulsed delivery introduces repeating off intervals, cycling the light source on and off according to a specified frequency and waveform.
In their comprehensive review of light parameters, Zein, Selting, and Hamblin emphasize that incomplete reporting of optical dosimetry severely limits head-to-head comparisons between continuous and pulsed delivery modes (Zein, Selting, and Hamblin, 2018). Their core finding is not that one mode holds absolute clinical superiority, but rather that a pulse label requires complete physical documentation to have practical meaning.
When reading equipment literature, a selectable frequency switch is not a complete pulse specification. Operators should verify whether the diodes are mechanically shuttered or electronically gated, what waveform is produced (such as square or sinusoidal), and whether stated power figures represent instantaneous peak irradiance or true time-averaged power.
How do frequency and duty cycle differ, and what can you calculate?
Frequency refers to the repetition rate of cycles per second, expressed in Hertz (Hz). Duty cycle represents the fraction of each cycle during which the light source actively emits photons.
Hadis and colleagues highlight the critical need to report pulse timing and peak irradiance, as pulsing directly alters delivered radiant energy (Hadis and colleagues, 2016). For an idealized rectangular (square) waveform with complete shutoff between pulses:
Duty Cycle %= (Pulse Width (On-Time) x Total Cycle Duration) x 100
For example, consider a system pulsing at 10 Hz:
-
Total cycle duration is 0.1 seconds (100 milliseconds).
-
If each pulse stays illuminated for 0.02 seconds (20 milliseconds), the source is on for 20% of the cycle and off for 80%.
-
Across a 10-minute (600-second) session, the diodes actively emit light for only 120 seconds.
For an ideal square wave with zero residual emission during off intervals, average irradiance equals peak irradiance multiplied by the duty cycle. If a device outputs 100 mW/cm² at peak with a 20% duty cycle, its time-averaged irradiance is only 20 mW/cm². Assuming the device delivered 100 mW/cm² continuously would overestimate total delivered energy by a factor of five.
|
Parameter |
What It Describes |
What It Does Not Establish Alone |
|
Frequency (Hz) |
Repetition rate of cycles per second |
Total energy delivered to tissue |
|
Pulse Width (ms) |
Duration of an individual on-pulse |
Average optical output without duty cycle |
|
Duty Cycle (%) |
On-time fraction of a repeating cycle |
Clinical superiority over continuous light |
|
Peak Irradiance (mW/cm²) |
Maximum instantaneous power per unit area |
Actual energy accumulated over session time |
|
Average Irradiance (mW/cm²) |
Radiant intensity averaged over the entire cycle |
Incident dose delivered at deeper anatomical depths |
|
Radiant Exposure (J/cm²) |
Total energy incident per unit area |
Identical biological response across varied protocols |
Why do average power and the measurement plane matter together?
A gross power specification in watts does not describe how light distributes across an illuminated subject. Jenkins and Carroll established that beam area at the skin or cell culture surface is an essential reporting parameter that must not be confused with aperture area (Jenkins and Carroll, 2011). Geometry, beam spread, and measurement position dictate the energy density actually received.

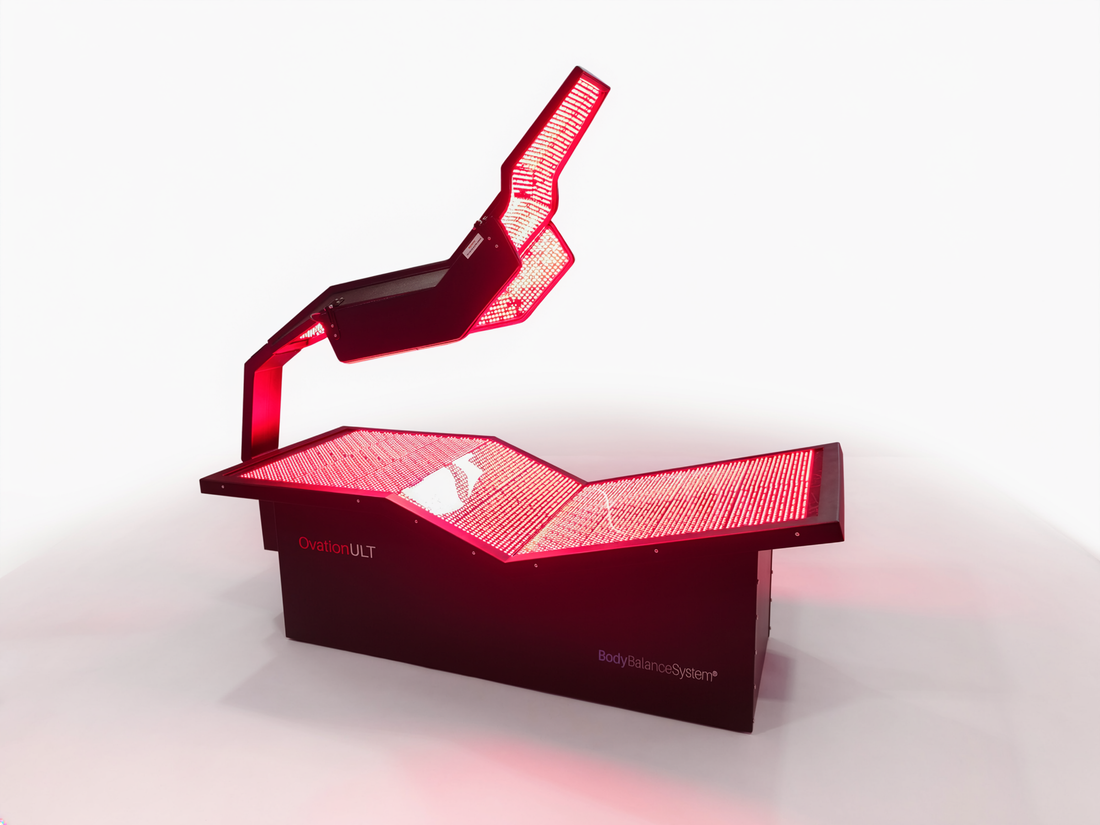

Body Balance System reports the OvationULT specification as 65 mW/cm² at the acrylic surface using LightLab methodology. The phrase "at the acrylic surface" defines the exact physical plane where the client makes contact, rather than an unverified diode-level number.
The OvationULT incorporates 28,443 high-output diodes: 22,755 visible red (635 nm) and 5,688 near-infrared (850 nm). Diode counts reflect engineering density and physical coverage, not wavelength-specific power fractions. Total irradiance cannot be split mathematically by diode ratios without calibrated spectral radiometer measurements.
Does matching radiant exposure prove that two protocols are equivalent?
No. Hadis and colleagues demonstrated that matching total radiant exposure (energy density in J/cm²) using different combinations of irradiance and exposure duration does not guarantee identical biological responses (Hadis and colleagues, 2016). Photobiomodulation follows a biphasic dose-response curve, meaning optical intensity and exposure time interact non-linearly.
When evaluating comparative studies, examine the complete protocol:
-
Target biological model and tissue thickness.
-
Delivery geometry and distance from emitter.
-
Precise outcome metrics and observation timelines.
-
Whether red and near-infrared wavelengths were evaluated under identical average irradiances.
If multiple variables change simultaneously (such as altering frequency while also reducing total exposure time), the study cannot isolate pulsing as the active mechanism. Similarly, a study that shows no difference between continuous and pulsed delivery under a specific protocol does not prove they behave identically across all treatment parameters.
What should operators extract from a study before making comparisons?
Rather than relying on marketing summaries or abstract conclusions, build a standardized evidence sheet based on the reporting framework established by Jenkins and Carroll (Jenkins and Carroll, 2011):
-
Source Geometry: Record the emitter type (laser diode vs. LED), peak wavelengths, beam divergence angle, distance to subject, and measurement plane.
-
Pulse Characteristics: Note pulse frequency (Hz), pulse duration (milliseconds), waveform profile, and calculated duty cycle.
-
Power Metrics: Differentiate peak irradiance from time-averaged irradiance (mW/cm²), and record the exact instrumentation used.
-
Delivered Fluence: Verify total radiant exposure (J/cm²), treatment interval cadence, and total cumulative sessions.
-
