The Physics of Close-Proximity Photobiomodulation: Beam Divergence, Inverse-Square Law, and Effective Dosing

The inverse-square law is a foundational principle of optics stating that the intensity of light radiating from a point source is inversely proportional to the square of the distance from that source:

$$\text{Intensity} \propto \frac{1}{\text{Distance}^2}$$

While LED arrays act as extended panel sources rather than single point emitters at very close range, the same underlying rule applies once a client moves away from the diodes. Doubling the distance between an LED and the body does not simply halve the light exposure; it reduces delivered intensity by up to 75%.

When commercial equipment requires clients to stand or sit several feet away from a wall-mounted panel, the vast majority of emitted photons scatter into the room. Achieving an equivalent radiant exposure at that distance requires impractically long sessions, which slows turnover and compromises operational efficiency.

What is beam divergence and how does it cause energy loss?

Light-emitting diodes (LEDs) are directional light sources, but they do not produce a collimated beam like a clinical laser. Instead, LEDs project light outward in a cone, defined by their viewing angle (commonly between 60 and 120 degrees).

As light leaves the diode, the cone expands. Over distance:

1. Photons Spread Over Larger Surface Area: The radiant power is diluted across an increasingly broad geometric footprint.

2. Angle of Incidence Increases: Photons striking skin at oblique angles are far more likely to reflect off the stratum corneum rather than penetrate into tissue layers.

3. Overlapping Gaps Emerge: At long distances, uneven diode patterns create hot spots and dead zones, leading to inconsistent energy distribution across the client's body.

By contrast, positioning an acrylic treatment surface within 0 to 2 inches of the client minimizes beam expansion. Cones of light from adjacent diodes overlap immediately at the surface plane, creating a continuous, uniform field of illumination across the entire treatment envelope.

Surface irradiance vs diode output: why measurement planes matter

One of the most confusing areas in commercial red light equipment procurement is how irradiance is reported. Manufacturers frequently advertise the radiant power measured directly at the diode chip with specialized sensor probes, citing figures like 100 to 150 mW/cm².

However, clients do not touch the bare diode chips. In a commercial setting, clients rest on or beneath an acrylic barrier.

Heating skin is not the same as delivering a photobiomodulation dose at therapeutic irradiance levels at the cellular level. To provide transparent and verifiable data, Body Balance System utilizes LightLab methodology, measuring output strictly at the acrylic treatment surface where the client makes contact.

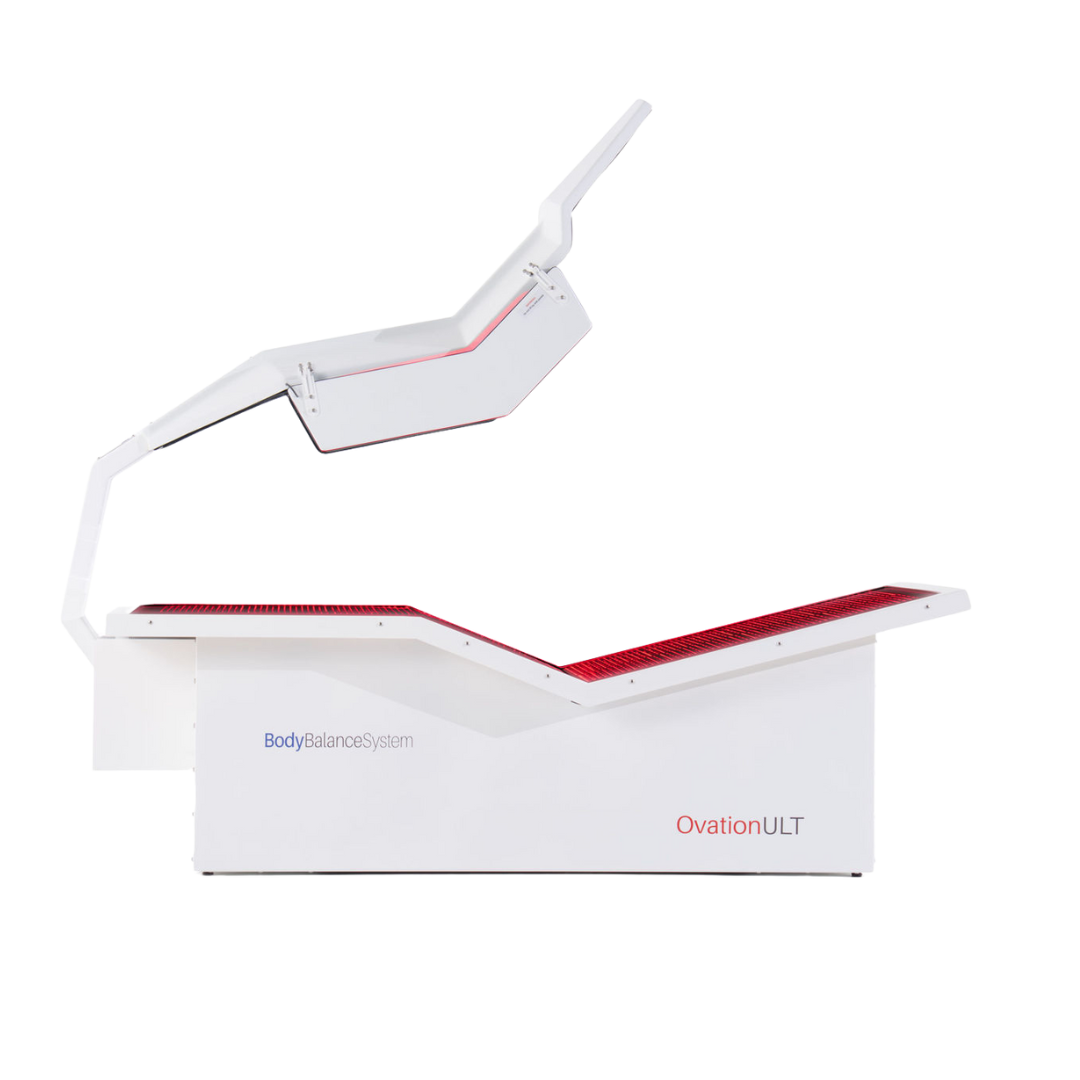

The OvationULT maintains an independently measured 65 mW/cm² at the acrylic plane across 28,443 diodes (22,755 red at 635 nm and 5,688 near-infrared at 850 nm). At this plane, a standard 15-minute commercial session delivers:

Because the zero-gravity canopy sits 0 to 2 inches from the client, this calculated energy density actually reaches the skin surface rather than dissipating into the surrounding air column.

How proximity affects commercial workflow and room throughput

Space planning and equipment design directly influence facility profitability. When a facility uses wall-mounted panels or open-air light systems, operators are forced to schedule 30 to 45-minute appointments to compensate for distance-related energy loss. Longer sessions bottleneck room capacity and restrict daily bookings.

With a close-proximity clamshell architecture:

• Shorter Session Times: High delivered irradiance at close proximity enables full-body sessions within 10 to 20 minutes (typical 15).

• Doubled Client Capacity: A 15-minute operating format allows facilities to comfortably handle 2 clients per hour per room including turnover and sanitation.

• Consistent Ergonomics: Clients recline comfortably in a private, zero-gravity enclosure rather than standing uncomfortably in front of distant wall panels for extended periods.

Regulatory boundaries: keeping equipment conversations compliant

Commercial operators must maintain clear regulatory separation between third-party academic literature on cellular optics and compliant front-desk marketing. While peer-reviewed studies examine the biophysics of photon absorption, equipment marketing must adhere to listed manufacturer indications.

The OvationULT is an FDA registered Class II medical device under Registration #3010627475 (product code ILY). Under 21 CFR 890.5500, therapeutic infrared heating devices are indicated for:

• Topical heating

• Temporary relief of minor muscle and joint pain and stiffness

• Temporary relief of minor arthritis pain

• Relaxation of muscle spasms

• Temporary increase in local blood circulation

Educating clients on the physics of close-proximity delivery builds professional trust, while anchoring service descriptions to relaxation, circulation, and temporary musculoskeletal comfort ensures full regulatory compliance.

Frequently Asked Questions

Why does proximity matter so much in red light therapy?

Proximity matters because light intensity decays rapidly over distance due to beam divergence and inverse-square dissipation. Positioning diodes within 0 to 2 inches of the client ensures that the stated radiant energy actually reaches the body rather than scattering into the room.

What is the difference between irradiance measured at the diode vs at the acrylic?

Diode-level measurements record output directly at the emitter face, which artificially inflates power numbers. Acrylic-level measurement (such as Body Balance System's LightLab methodology) records the true radiant power delivered at the exact plane where the client makes contact.

Can a panel positioned 12 inches away match a close-proximity bed?

Only if session time is substantially lengthened. Because roughly 60% to 75% of radiant power is lost to beam spread over 12 inches, a panel session must run significantly longer to deliver an equivalent surface dose, limiting daily appointment capacity.

What does zero-gravity canopy design mean for light delivery?

Zero-gravity canopy design refers to a contoured clamshell architecture that suspends the upper diode array uniformly 0 to 2 inches over the client's body. This maintains an even 65 mW/cm² exposure across the entire body without requiring uncomfortable direct mechanical pressure.

What is the standard commercial session time for a close-proximity bed?

Because close-proximity systems transfer energy efficiently, commercial sessions run 10 to 20 minutes (with 15 minutes serving as the industry standard). This allows operators to maintain a reliable throughput baseline of 2 clients per hour.
